类 别 | 规格参数 | 备注 |

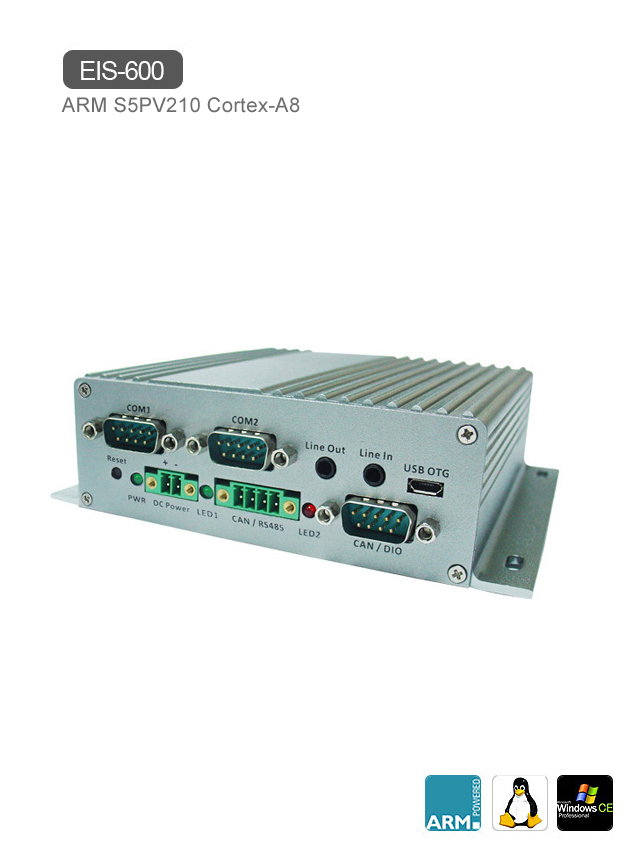

| Model Name | EIS-600 | |
| Processor | 1.0 GHz Samsung S5PV210 ARM Cortex-A8 |
|
| System Memory | 512MB DDR2 SDRAM | |
| Flash | 512MB Nand Flash | |
| 3D Graphic Engine | SGX540 | |
| Onboard LAN | DM9000 Ethernet transceiver | |
| Onboard Audio | AC97 Low Power stereo codec | |
| Video Decoder | MPEG2 / VC-1 Video Decoder | |
| HDMI | Integrated HDMI 1.3 transmitter | |
| USB Host | USB 4604 USB 2.0 high speed 4-port
hub controllers | |
| USB OTG | USB Device for Debug , USB HOST | |
| Micro SD | Support : Max 32GB | |

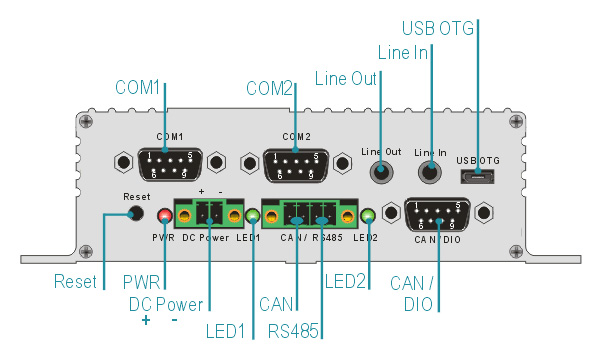

| Front I/O | 1 x Reset button
1 x Power LED
2 x Indicator LED
1 x DC Power input connector by 2-pole
Phoenix connector
2 x COM D-sub 9-pin connector supports
1 X COM (COM supports 2-wires Tx / Rx)
1 x DB9-pin (8-bit GPIO, Including SPI x 1 / IIC x 1 / GPIO x 2)
1 x Micro USB2.0 type B connector support
OTG
2 x Φ3.5 phone jack connectors as HP-out,
MIC-in 2 X RS485 by 4-pole phoenix connector | |
Back I/O
| 1 x Nand Flash/ Download image mode select switch
1 x RJ-45 connector
2 x USB 2.0 connectors
1 x HDMI connector
1 x VGA connector | |
Bottom Opening Covers | Open window with removable door plate to
access the micro SD flash drive | |
| | | |
| Power Supply | DC 6V~DC 30V input | |
| Operating System | Linux Kernel 2.6.35 / WinCE 6.0 | |
| Operating Temperature | -20℃~ 85℃(3G Wifi not included) | |
| Option Humidity | 0~90% @ 45℃,non-condensing | |
Vibration Loading During Operation | With onboard eMMC | |
| Shock During Operation | With onboard eMMC | |

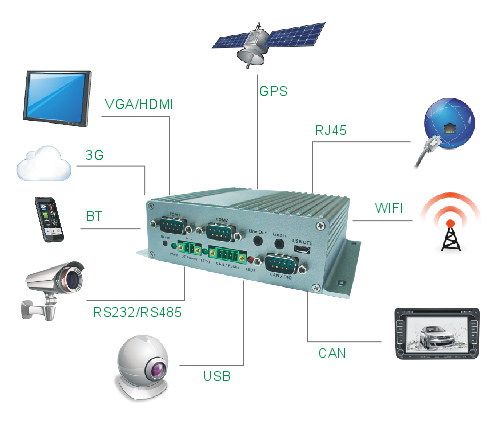

Option Modules
| Linux System Support:
GPS / WIFI / 3G pppoe / ZigBee / RGB
WinCE System Support:
GPS /3G pppoe/ ZigBee
| |
|
| |
| | | |
| | | |
