类 别 | 规格参数 |

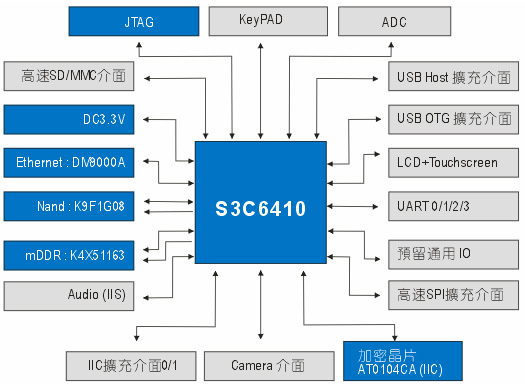

系统规格 | CPU | Samsung S3C6410XHL-66，主频为667MHz，核心为ARM1176JZF-S |
| SDRAM | 128MB SDRAM (可扩充至256MB) |
| SLC Nand Flash | 128MB (可扩充至256MB) |
| MLC Nand Flash | 2G/4G/8G (Option) |
接口规格 | Display & Graphics | Programmable color LCD controller supportsup to a 24 bpp TFT interface |
| PC Card Expansion | Multiple SD/MMC card support，Micro-SD (T-Flash) |
| Touch Screen | Integrated 4-wire touchscreen controller |
| Network Support | 10/100 Base-T Ethernet PHY |
| Serial Ports | Up to four external UARTs
Two I2C ports
Two SPI ports |
| USB Ports | One USB2.0 On-the-Go interface
One USB1.1 high-speed host interface |
| GPIO | Progarmmable I/O depending on peripheral requirements |
| | |
环境特性 | 输入电压/电流 | 5V / 1A |
| 工作温度 | -20~85℃ |
| 存储温度 | -40~100℃ |
| 工作湿度 | 45%到85% RH |
| 存储湿度 | 30%到90% RH |
系统软件 | | U-Boot (bootloader / monitor) |
| | Open source Linux BSP |
| | WinCE 6.0 |
| | Linux 2.6.29 |
结构参数 | 外观 | 邮票孔特性，焊接固定 |

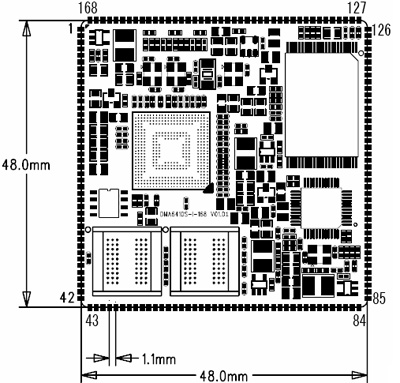

| 核心板尺寸 | 48mm（长）×48mm（宽）×2.7mm（厚） |
| 引脚数 | 4X42 Pin，168个引脚 |
| 引脚间距 | 1.1 mm |
| | |
